Mobile Multiband Antennas
LTX1788 Series
Configurable to 17-Connections
8x Cellular, Up to 8x WiFi, 1x GNSS
Covers 5G/LTE & WiFi 6E/7
LTMWG946 Series
Configurable Up to 11-Connections
4x Cellular, Up to 6x WiFi, 1x GNSS
Covers 5G/LTE & WiFi 6E/7
MXG945 Series
Sleek, Compact, Aerodynamic Design
4x Cellular, Up to 5x WiFi, 1x GNSS
Covers 5G/LTE & WiFi 6E/7
Mobile Covert Antennas

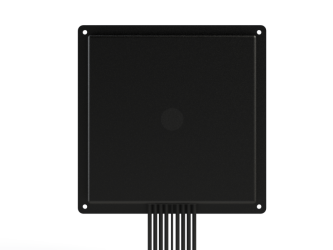

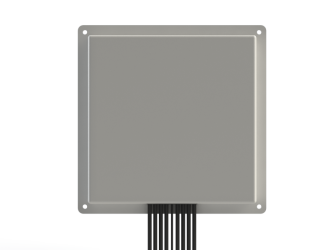

PNMG944
Covert/Wall Mount Multiband MIMO
4x Cellular, 4x WiFi, 1x GNSS
Covers 5G/LTE & WiFi 6E/7
CVWG508
Covert MIMO Multiband
2x Cellular, 2x WiFi 6E/7, 1x GNSS
Compact: Measuring 2” x 7” x .75”
CVL-WB2
Broadband 600 MHz – 7.2 GHz
Use for either 5G Sub-6 or WiFi 6E/7
Compact: 0.22” x 1.54” x 5.70”

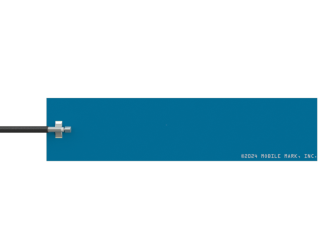

EM-600/7200
Flexible Embedded Omnidirectional
1x 5G LTE: 617 – 7200 MHz
Compact: Measuring 4.1” x .95” x .008”
Mobile Specialty Antennas
SMG540
Configurable Up to 20 Different Models
4x Cellular, 1x GNSS
Covers 5G/LTE, Configurable with WiFi 6E/7
LTB4-600/7200
Slim Omnidirectional Cabinet
4x Cellular: 617 – 7200 MHz
Ideal for Utility Boxes
Infrastructure Directional Antennas

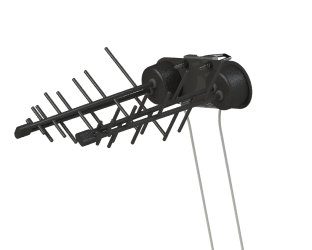

Y42700WB-2X
Dual Log Periodic, 600 – 6000 MHz
Slant ±45° 2x MIMO, 14 dBi Gain
Heavy Duty Directional Coverage

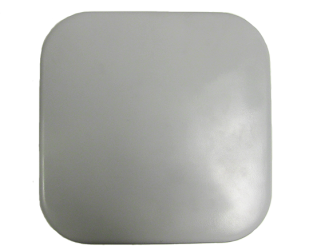

PND10-600/6000
2x Cellular MIMO Directional Panel
15° Down Tilt Adjustment
Dual Slant Polarization ±45°
Infrastructure Omni-Directional Antennas
OD3-600/6000
Heavy Duty Omni-Directional Site Antenna
Ground plane Independent
Vibration Resistant Option: OD3-600/6000MOD2
ECO-600/7200
Wideband Omni-Directional
Cellular: 617 – 960 MHz & 1710 – 7200 MHz
Direct “N” Mount or Recessed “N” Plug
DOD3-600/7200
Omni-Directional MIMO Antenna
2x Cellular: 617 – 960 MHz & 1710 – 7200 MHz
Ground plane Independent
DOD7-700/2700
Heavy Duty Omni-Directional Antenna
2x Cellular: 694 – 2700 MHz
Lower Band Gain: 5 dBi, Upper Band Gain: 7 dBi
Infrastructure Specialty Antennas
BPN942
Base Station for Private Networks
4x Cellular, 2x WiFi, 1x GPS
Three Mounting Options
PNMG944
Covert/Wall Mount Multiband MIMO
4x Cellular, 4x WiFi, 1x GNSS
Covers 5G/LTE & WiFi 6E/7
LTMG942 (with LTM-PMK)
Configurable to 9-Connections
4x Cellular, 2x WiFi, 1x GNSS
Pole Mounting Kit for LTM Series
Call Mobile Mark for the Most Advanced 5G-ready
Network Antenna Design
Mobile Mark Antenna Solutions designs and manufactures site, mobile and device antennas for 30 MHz – 7.2 GHz. Applications include GPS Tracking & Fleet Management, Cellular 3G & 4G LTE, WiFi, RFID, Public Safety FirstNet, M2M & IoT, MIMO Coverage, Smart City Networks and Autonomous & Connected Cars. Engineering and custom design services are available. Mobile Mark’s global headquarters, which include research facilities and manufacturing plant, are located near Chicago, IL. An additional manufacturing and sales facility is located near Birmingham, UK. For further information visit our website: www.mobilemark.com. Moving Wireless Forward®
We provide a quick response for both engineering advice and sales support for cellular antenna design. Give us a call toll-free at 800-648-2800 or send an email to info@mobilemark.com.
