Infrastructure & Fixed Site Antennas

Infrastructure and Fixed Site

Extending the range of networks and providing a reliable signal for M2M is more important than ever.

Infrastructure and Fixed Site

Utilities Antennas

Antenna For Utilities

Antenna For Utilities

Reliable Antenna Solutions for your Infrastructure and Fixed Site

Mobile Mark’s fixed site antennas are the ideal solution for building out base station systems and extending wireless network coverage.

M2M network providers are continuously upgrading various portions of their infrastructure to improve the overall performance of their network. One important aspect to consider in the big picture of network improvement is optimal antenna configuration.

It is extremely important to have reliable and efficient antennas aligned to receive and transmit signals. Fixed site antennas allow the infrastructure to be extended into hard to reach areas.

Cellular

OD3-700/2700

Omni-Directional
694-960 &1700-2700 MHz
3 dBi Gain

DOD3-700/2700

DOD3-700/2700

2x MIMO Omni Directional
694-960 & 1700-2700 MHz
3 dBi Gain

PND10-2400/5500

PND-700/2100D

Dual-Slant LTE Directional Panel
694-960 MHz (8dBi) and 1710-2170 MHz (12 dBi)

WiFi

PND10-2400/5500

PND10-W

W 6x MIMO Panel
2.4-2.5 GHz (8 dBi) & 4.9-6.0 GHz (10 dBi)

ECO5-2400/5500

ECO5-2400/5500

Omni-Directional
2.4-2.5 GHz and 5.0-6.0 GHz
5 dBi both bands

SCR10-3500

SCR-2400/5500

Directional
2.4-2.5 GHz (9 dBi) & 4.9-6.0 (12 dBi)

AWS & LTE-A

NXD-W (4x WiFi) MIMO WiFi

PN16-3000

Panel
2.2-3.8 GHz
16 dBi Gain

PS12-2400-90

PS12-2600-90

Panel 90° Sector
Low Profile, 12.5”
(31.75 cm) tall
2.5-2.7 GHz
12 dBi Gain

YAG9-3500

YAG9-3500

Yagi
3.5 GHz
5 dBi Gain

DSRC & ITS

PN18-5900PM PN6-915 Panel Antenna for RFID Reader IoMT

PN18-5900PM

Panel
5850-5925 MHz
8 dBi Gain

ECO6-5900RN

Omni-Directional
Device Mount
5.8-6.0 GHz
6 dBi Gain

BD-5900

Bi-Directional
5850-5925 MHz
13 dBi Gain

ISM & UHF

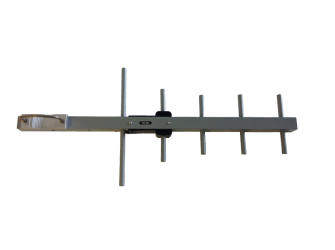

YAG8-925N, YAG8-450N

YAG8-925N

ISM Yagi
866-960 MHz
11 dBi Gain

OD3-700/2700

OD3-450

Omni-Directional
450-512 MHz
5 dBi Gain

EM-LTE Medical IoT, Embedded, Compact Antenna, IoHT, IoMT, Connected HealthCare, Digital Health, IoT

RM-915

Pole Mount
902-928 MHz
3 dBi Gain

Related Resources for Infrastructure & Fixed Site

Infrastructure and Fixed Site Brochure

Reference Guide

Product Catalogue

Company Overview

5 Common Applications for Antennas in Infrastructure & Fixed Site

1. CBRS & Private LTE

Expect to see more high frequency cellular applications using CBRS and Private LTE applications. These technologies rely on multiple antennas fixed onto base station towers for optimal functionality. Mobile Mark builds high quality directional antennas that deliver the reliable signal needed between cellular M2M nodes and base stations.
2. Cellular

Mobile Mark’s wide band OD and DOD series antennas offer superior omni-directional coverage for 4G LTE, while the Dual-Slant PND panel covers directional LTE and has a low PIM rating. Specialized directional and omni-directional antennas allow the Cellular infrastructure to be extended into hard to reach areas, providing a strong and reliable signal regardless of where Cellular devices are being used.
3. WiFi

Commercial WiFi users will find that faster data transfer is now possible with improvements to wireless protocols, such as 802.11 ac and 802.11n. With advances in WiFi protocol, WiFi signal has larger data throughout and extended range. Mobile Mark manufactures site antenna options for WiFi infrastructure including panels, omni-directional, and sector designs.
4. C-V2X & ITS

DSRC and ITS Technology is commonly used for vehicle-to-infrastructure and vehicle-to-vehicle applications. Mobile Mark has designed several directional, omni-directional, bi-directional, and sector antennas for use in DSRC and ITS settings including urban intersections or along highways. These antennas can help provide services for: vehicle crash prevention, emergency alerts to drivers, or even e-parking and toll payment.
5. ISM & UHF

Industrial Science and Medical radio bands can be used for data and non-voice applications for precision agriculture, agriculture monitoring, and remote weather stations. UHF is used in two-way radio systems for industrial, public safety, utility, and military purposes. Mobile Mark’s directional and omni-directional antennas are ideal solutions for ISM and UHF coverage.
