New Product Introduction

MX900 Series

MXG944 Multiband Public Safety Antenna

5G Cellular LTE, WiFi, & GNSS

Mobile Mark’s MXG944 is the first release of the MX 900 Series mobile antennas. As the industries of Public Safety, Fleet Management, and Public Transportation have grown, so too have their needs for reliable and multifaceted antennas for vehicles of all kinds. The MXG944 covers bands up to 7.2 GHz, WiFi 6e, and GNSS. For dependable defense against the elements, this antenna meets the IP67 rating for water and dust ingress; to increase the longevity of the antenna, it also meets standard military and industrial shock and vibration testing.

Constructed to exceed the expectations and needs of users, the high-performance MXG944 provides a sleek, compact, and versatile alternative to multiple antenna options. The MXG944 standard configuration is a multiband, nine-element 4x 5G/LTE, 4x Wi-Fi 6e, and 1x GNSS.

Reach Out to Us

847-737-1191

  • This field is for validation purposes and should be left unchanged.

Specific bands:

5G sub-6:617-960 MHz, 3dBi, 1.7-7.2 GHz, 4 dBi
Wi-Fi 6e: 2.4-2.5 GHz, 3 dBi, 4.9-7.2 GHz, 4 dBi
GNSS: 1561, 1575, & 1602 MHz, 5 dBi

All within a signal radome, coverage and connection are efficient and reliable to enable high-speed data transmissions and reliable communications over long distances and in remote areas.

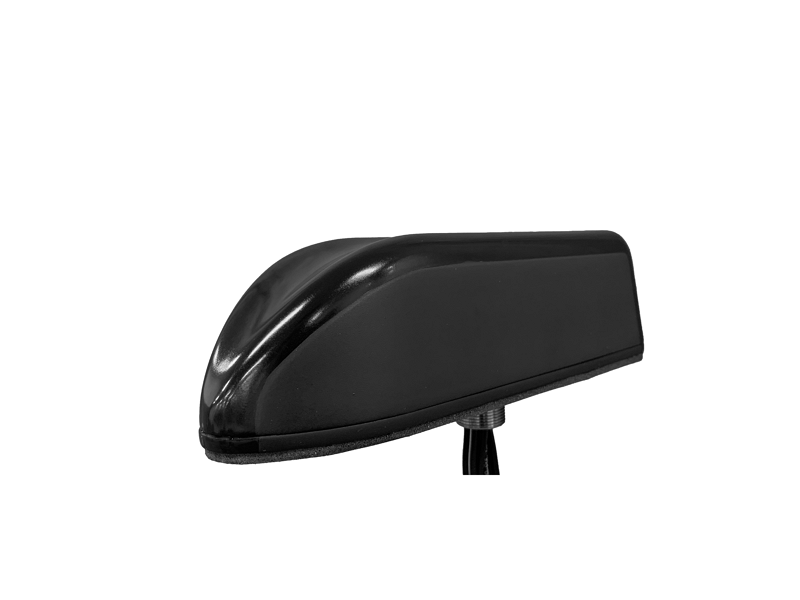

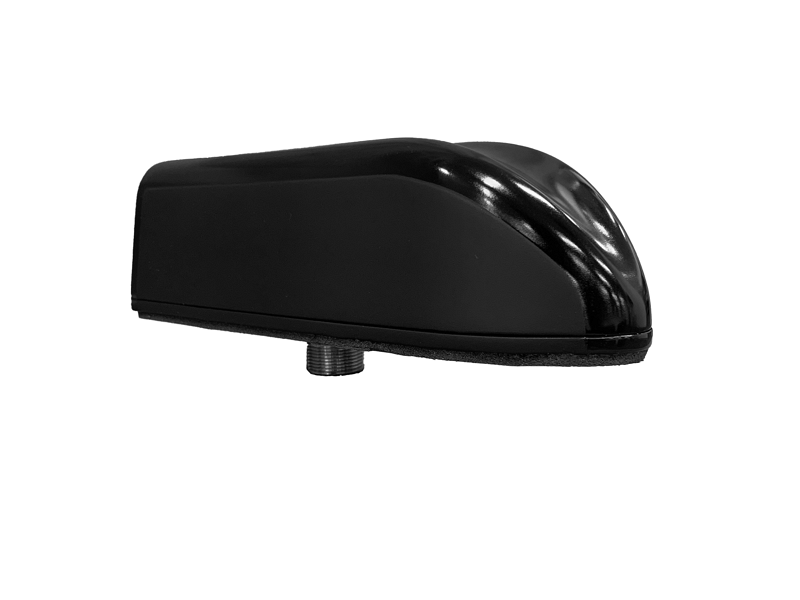

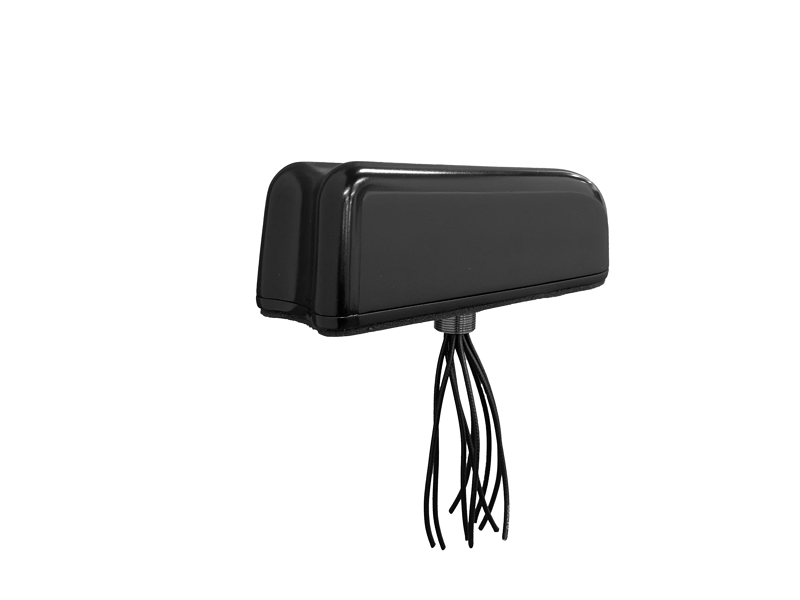

The cellular, GNSS, and WiFi antenna elements all fit within a slim, tapered radome that fits snugly in the roof ridges of the Ford Interceptor and can be surface-mounted or mag-mounted to any vehicle. This multifaceted housing extends the incredible capabilities of the MX series antennas without sacrificing style, aerodynamics, or function. Thanks to our in-house production team, the cables required may be customized to fit the exact dimensions needed, and cables are color-coded for simple installation to the router.

The MX900 Series antennas are made in USA and exceed the Buy American Act.

Click here to view the MXG944 Spec Sheet.
