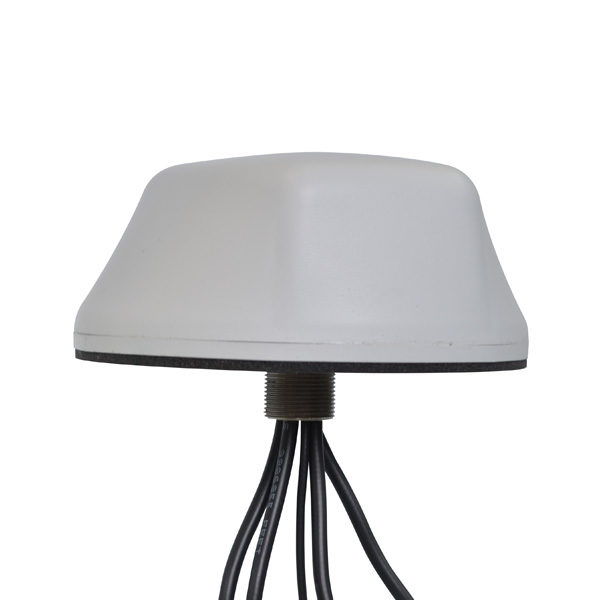

LTMG501 (2x LTE, 2x WiFi, GNSS)

GNSS Multiband Surface Mount Antenna

5 cables: two LTE Cellular, two WiFi, one GNSS

Cable 1 & 2: 694-960 MHz, 3 dBi & 1710-2170 MHz, 4 dBi

Cable 3 & 4: 2.4-2.5 & 4.9-6.0 GHz, 5 dBi

Cable 5 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi

Specify MLTMG501 for mag-mount version.

Specify LTM501 or MLTM501 for GPS models.
Purchase

Categories:

5-in-1, GPS GNSS Multiband by # elements, GPS GNSS Multiband by Model, LTM Series

Description

The “500” series LTM antennas include two Cellular antennas, two WiFi antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi.

The LTMG501 (2x LTE, 2x WiFi, GNSS) WiFi MIMO Antenna is ideal for fleet management systems that combine GNSS with a broadband LTE MIMO modem as well as a WiFi MIMO modem.

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG-501 series antennas take up significantly less space than multiple antennas.

The antenna are available in either surface-mount or mag-mount models. Specify MLTMG501 for the mag-mount version or LTM501 for the GPS version.

Visit our eStore to check out and customize a Multi-band Surface Mount Antenna Online. Check out other GNSS capable Multiband Antennas by model.

Specifications

ltm501-and-mltm501-spec-sheet

File size: 303.57 KB

Created: 10-06-2020

Updated: 10-06-2020

Download Preview

LTM501 Series Radiation Pattern

File size: 1.05 MB

Created: 22-05-2020

Updated: 22-05-2020

Download Preview
